Textile ducting

Textile ducts or textile air-diffusers are technical products used for diffusing or transporting treated air from one point to another, as per exact criteria.

From an aeraulic point of view: Diffusion of air by textile ducts gives perfect air diffusion (homogeneous temperatures, delayering, etc. and increases human comfort by keeping airspeeds and temperatures under control. Every order is the subject of an aeraulic study in order to meet end-user requirements.

From a regulations point of view: Textile ducts comply with regulations, especially with fire protection standards in force in every country. Its textile design enables it to benefit from all the latest technical innovations: Fabrics of different weights, coatings, special anti-bacterial or antistatic fabrics, etc.

From an installation point of view: Textile ducts are light, resistant products with few restrictions. AIRNEO textile ducts are designed to be easily removable. They can be adapted to the constraints found on all types of premises: They can be in any shape and be adapted to all types of air treatment. They are products that are upgradable and modular over time.

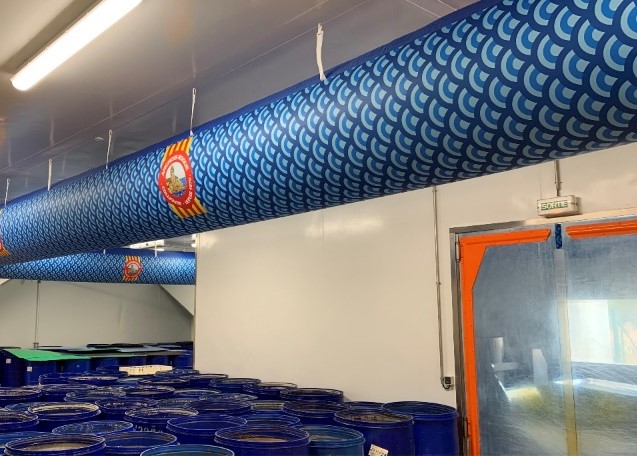

From an aesthetic point of view: AIRNEO textile ducts offer a wide range of materials, colours, shapes and support systems. Today, textile ducts can be personalized by means of digital printing.

From a servicing point of view: Textile ducts from the AIRNEO range are cleanable, which guarantees their aeraulic efficiency and increases their service life. With its AirnéoPlus offer, ATC has imagined a whole range of services for maintaining aeraulic networks over time.

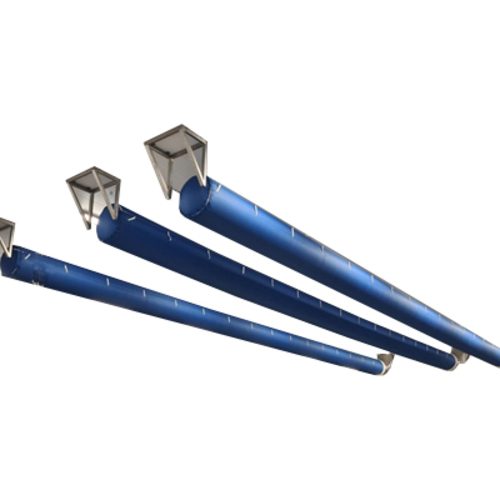

Diffusion types

RADIANT TYPE

Diffusion Types
Principle: Low-speed air dispersion (0.2 to 1m per sec.) through a porous fabric surface

Benefits:
  • Short air dispersion range from 2 to 4 m
  • High comfort (accurate control of air velocities, no draughts)
  • Less airbone particles with a filtration effect
Applications :
  • Cooling
  • Air-conditionning
  • Ventilating for food processing industries, laboratories and clean rooms.
Request a quotation

IMPULSION TYPE

Diffusion Types
Principle: Medium or high-speed air dispersion (from 2 to 7m per sec.) through woven wire strips

Benefits:
  • Medium to long air dispersion from 3 to 8 m.
  • Less diffuser required
  • Lower clogging rate
Applications:
  • Heating
  • Cooling
  • Air-conditionning and air curtains in medium height premises, food  processing industries, stores and public buildings, industries...
Request a quotation

ENERGY TYPE

Diffusion Types
Principle : Medium or high-speed air dispersion via calibrated openings (from 8 to 30m per sec.)

Benefits :
  • Long air dispersion range from 8 to 30 m
  • Use possible with reversible units (heating/cooling)
  • High temperatures differentials (∆T) possible
Applications :
  • Heating
  • Cooling
  • Air-conditionning
  • Ventilating in high premises, food processing industries, supermarkets, industrial premises, stores and public buildings, airports...
Request a quotation

HERMETIC TYPE

Diffusion Types
Principle : Diffusers for transporting air

Benefits:
  • Less noise
  • Very light installation
Applications:
  • Air trransport from one point to an other
Request a quotation
