WT350 - Square steel swirl diffuser

WT350 - Square steel swirl diffuser

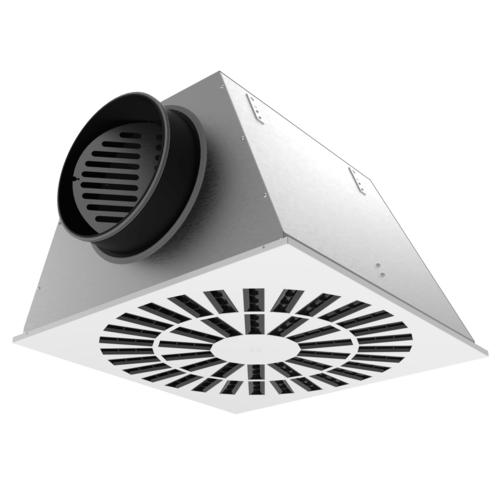

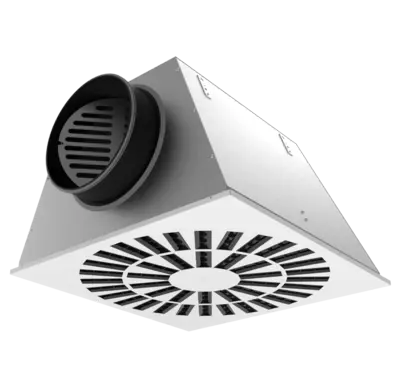

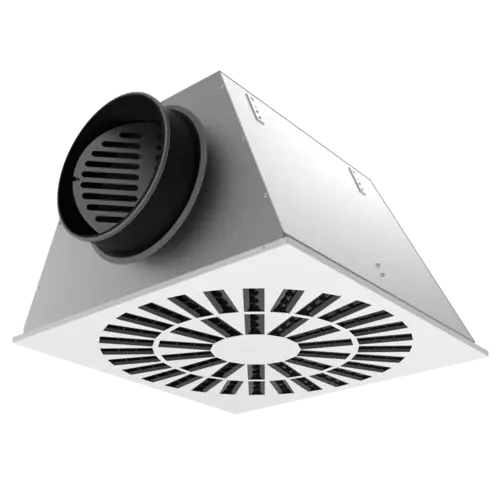

The square steel swirl diffuser with adjustable plastic drums type WT350 is used for the supply of cooled or heated air in facilities such as offices, shopping centres, schools, … Suitable for ceiling or exposed duct mounting. The diffuser is equipped with adjustable ABS deflectors creating the possibility to obtain an external or internal swirl. A high induction is obtained by the exceptional swirl discharge, which makes them extremely suitable for VAV terminal boxes. The plenum WP350S is designed in a pyramid shape in order to make it stackable and allow easy economical transport.

Detailed information

ID
WT350
Brand
Grada International
Material
Steel - Painted
Shape
Square

Documents

/en/documents/web_010/?wt350-product-information-sheet-26577.pdf
