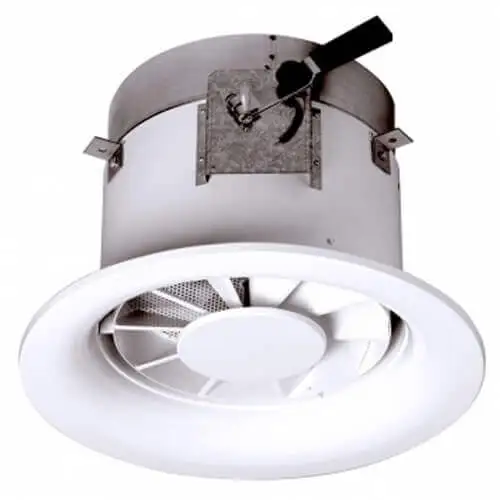

WR300 - Variable swirl diffuser

Swirl diffuser for ceiling or exposed duct mounting. Specially designed for spaces where considerable temperature changes take place and with ceilingheights of more than 4m, where high comfort standards are required. It can be used for commercial (conference rooms, ...) or industrial installations (industrial halls, airports, theatres, bank buildings, ...). Heated, cooled or isothermal air can be supplied by an adapted air pattern.Cold air has a tendency to ‘drop’, making it advisable to spread that air horizontally. Warm air however, can remain too close to the ceiling, not reaching the occupied zone.The variable swirl diffuser WR300,which can handle supply temperature differences of -10K up to +15K, can solve those problems.

Detailed information

ID
WR300
Brand
Grada International
Location
Ceiling
Duct
Material
Steel - Galvanized
Shape
Round

Documents

/en/documents/web_010/?wr300-product-information-sheet-16272.pdf
/en/documents/web_020/?wr300-technical-information-sheet-16271.pdf
