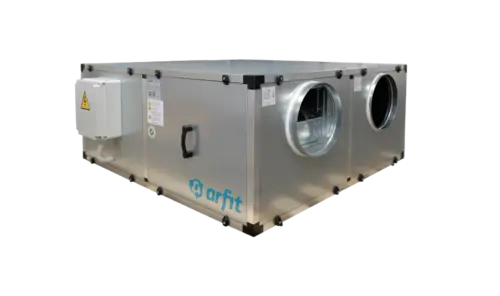

ECOEVO 2 EC - Heat recovery unit

Industrial eat recovery unit designed for indoor or outdoor installation. The unit is soundproofed and features removable side panels for easy internal access. Available with various accessories and configurations, and equipped with EC motors, an electrical panel with cut-off switch. Modular structure built with 30mm extruded aluminium profiles (DIN 17615) and reinforced nylon corners. Double-wall panels, 25 mm thick, with a Magnelis® exterior (C5 corrosion resistance class) and galvanized steel interior lining (EN 10192). The intermediate insulation consists of 25 mm self-extinguishing polystyrene panels with a density of 30 kg/m³, providing high resistance to mechanical stress. Different filter combinations, vertical configuration, air treatment modules, and Smart CO₂ or Smart Evolution controls available upon request.
