Kamouflage AP represents the latest advancement in smoke control systems, designed to combine aesthetic appeal with high performance. This innovative solution addresses the evolving needs of the HVAC and construction industries, offering unparalleled flexibility and compliance with stringent safety standards.

The Kamouflage AP Smoke Shutter

The Kamouflage AP smoke control shutter is a state-of-the-art solution classified under BS EN1366-10 for smoke control dampers. It is engineered to provide maximum versatility across different smoke management systems, combining aesthetic considerations with superior operational efficiency. The shutter's compatibility with various BS standards makes it an ideal choice for modern building requirements.

Key Features and Benefits

Versatile Classification:

  • Suitable for smoke management systems requiring ved, vew, or vedw classification.

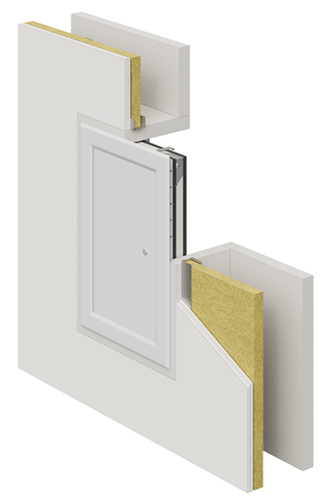

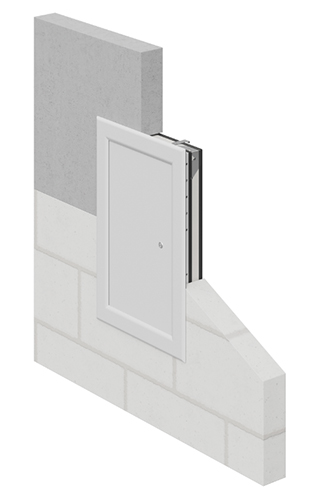

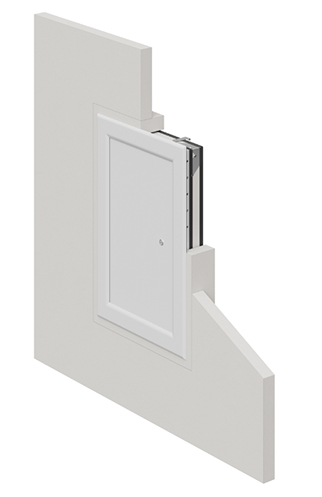

  • Installable in BS EN1366-8 tested smoke control ducts or builder’s work shafts.
  • Tested to BS EN1366-10 and BS EN1366-2 standards.
Vedw Classifications EN1366-10


Superior Thermal and Acoustic Insulation:

  • Provides thermal insulation of 1.1 W/m²K, equivalent to high-efficiency double glazing.
  • Reduces energy losses, enhancing building energy efficiency.
  • Acoustic insulation performance of Rw (C, Ctr): 33 (-2, -3), comparable to double or triple-glazed units.


Operational Efficiency:

  • Opens 90° regardless of size for maximum net passage.
  • Motor control allows partial opening for shallow ducts or shafts.
  • High free air passage with minimal pressure losses ensures optimal functionality.
Rf-technologies: The Kamouflage AP Smoke Shutter
Rf-technologies: The Kamouflage AP Smoke Shutter
Rf-technologies: The Kamouflage AP Smoke Shutter

Application and Compliance

The Kamouflage AP is specifically designed to meet stringent safety and performance standards:

  • Classification: EI60/90/120 (vedw<->o) S 1000 C 10000 AA multi.
  • Suitable for multi-compartment smoke control systems with automatic activation.
  • Operable in combined smoke control and environmental systems such as HVAC or night cooling (C10000).

Practical Benefits

  • Energy Efficiency: The fully insulated and sealed double-panel door leaf minimizes energy losses, making it a cost-effective choice for sustainable buildings.
  • Noise Reduction: The double-walled insulated door leaf and seal significantly reduce noise transmission between floors, enhancing occupant comfort.
  • Ease of Installation: The Kamouflage AP is designed for easy integration into existing systems, reducing installation time and costs.

Why Choose Kamouflage AP?

  • Trusted by leading construction and engineering teams globally for its reliability and performance.
  • Combines aesthetic appeal with practical functionality, making it suitable for a wide range of architectural designs.
  • Backed by rigorous testing and compliance with international standards, ensuring safety and peace of mind.

Conclusion

The Kamouflage AP smoke control shutter is an innovative solution that sets new benchmarks in the HVAC industry. Its combination of versatility, performance, and compliance with the latest standards makes it an essential component for modern building design. By choosing Kamouflage AP, you ensure not only the safety and efficiency of your smoke control systems but also contribute to the overall energy efficiency and acoustic comfort of your building.
